Van-Mounted Bin Wash System
Compact, Enclosed Bin Cleaning Solution
The Duplex-Zer0° Van-Mounted Bin Washer is purpose-built for operators who need to work in extreme climates, with proven reliability in countries such as Norway and Canada. Its fully enclosed design keeps the entire water system protected during transit, preventing damage from freezing conditions and ensuring all-season performance.

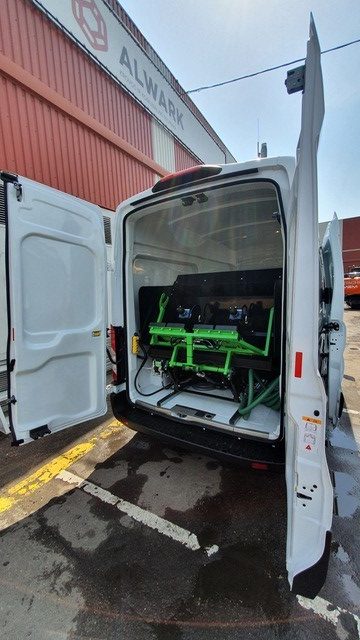

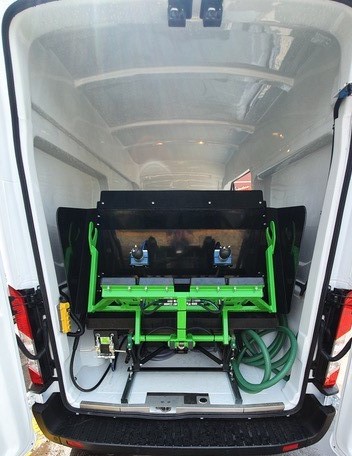

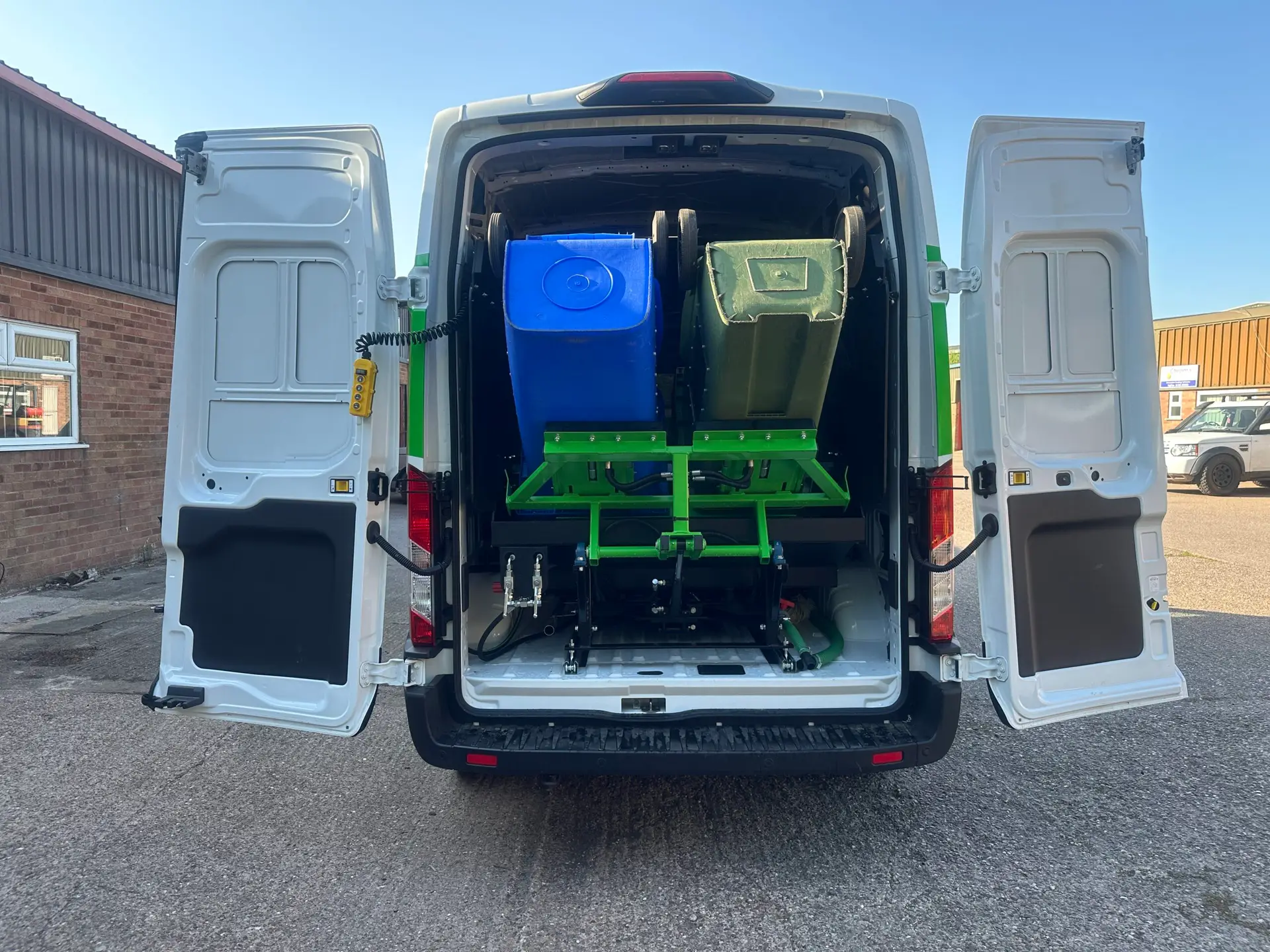

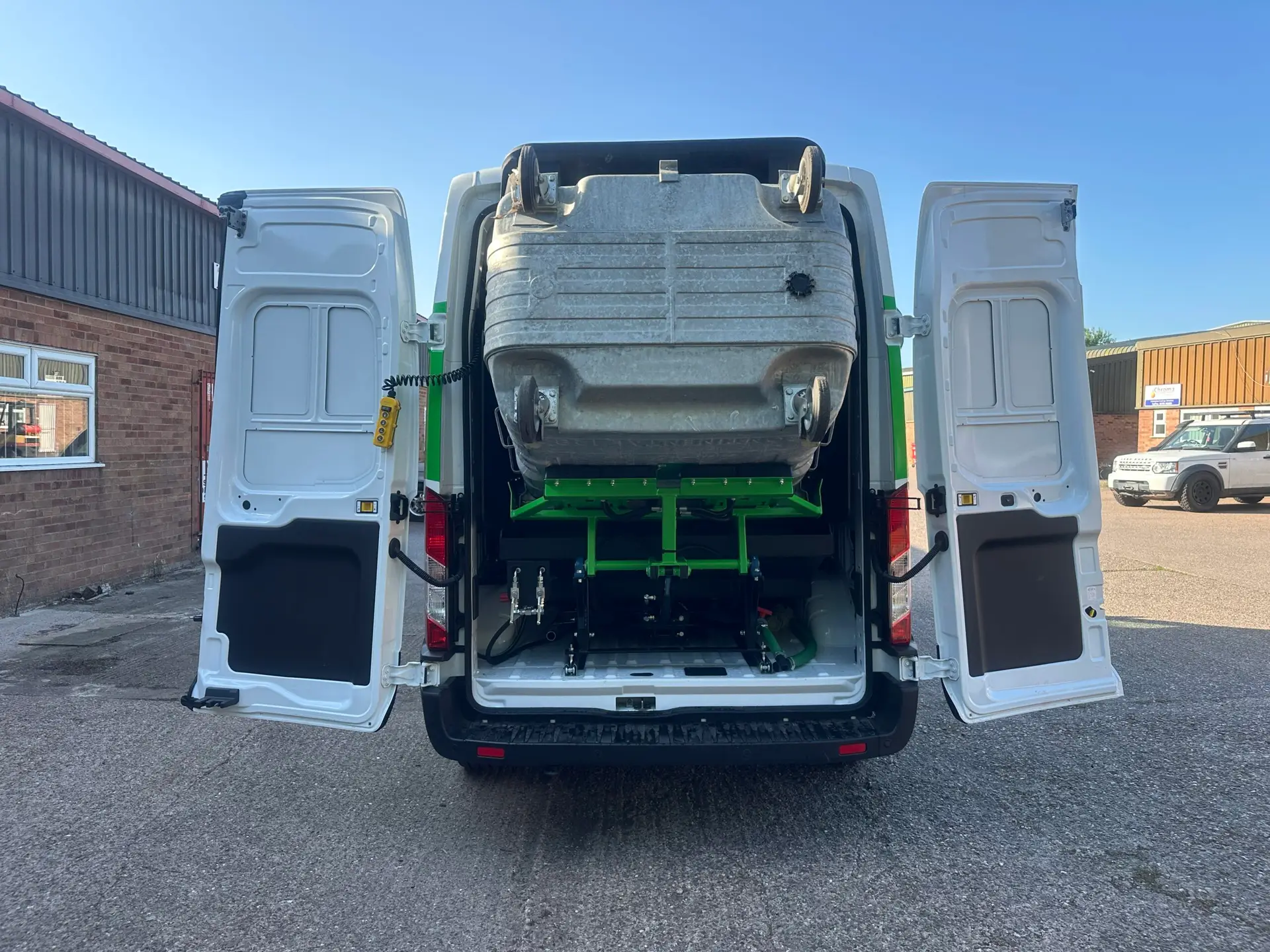

With a hydraulic slide-out system, the unit easily extends from the rear of the van when in use, allowing smooth operation of the bin lift. Once the job is complete, the system retracts neatly inside, making it safe, secure, and ready for transport.
Designed to fit most high-top enclosed vans, the Duplex -Zer0° delivers powerful performance and professional results:
The van-mounted Duplex -Zer0° Bin Washer is the ultimate solution for professional bin cleaning. Designed to handle both domestic wheelie bins and commercial waste containers from 120L to 1280L, it delivers powerful, reliable cleaning in all conditions.

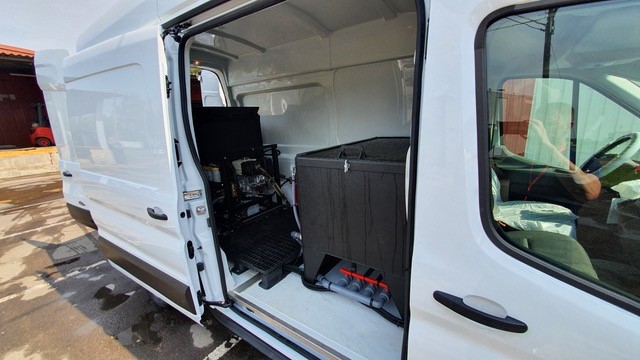

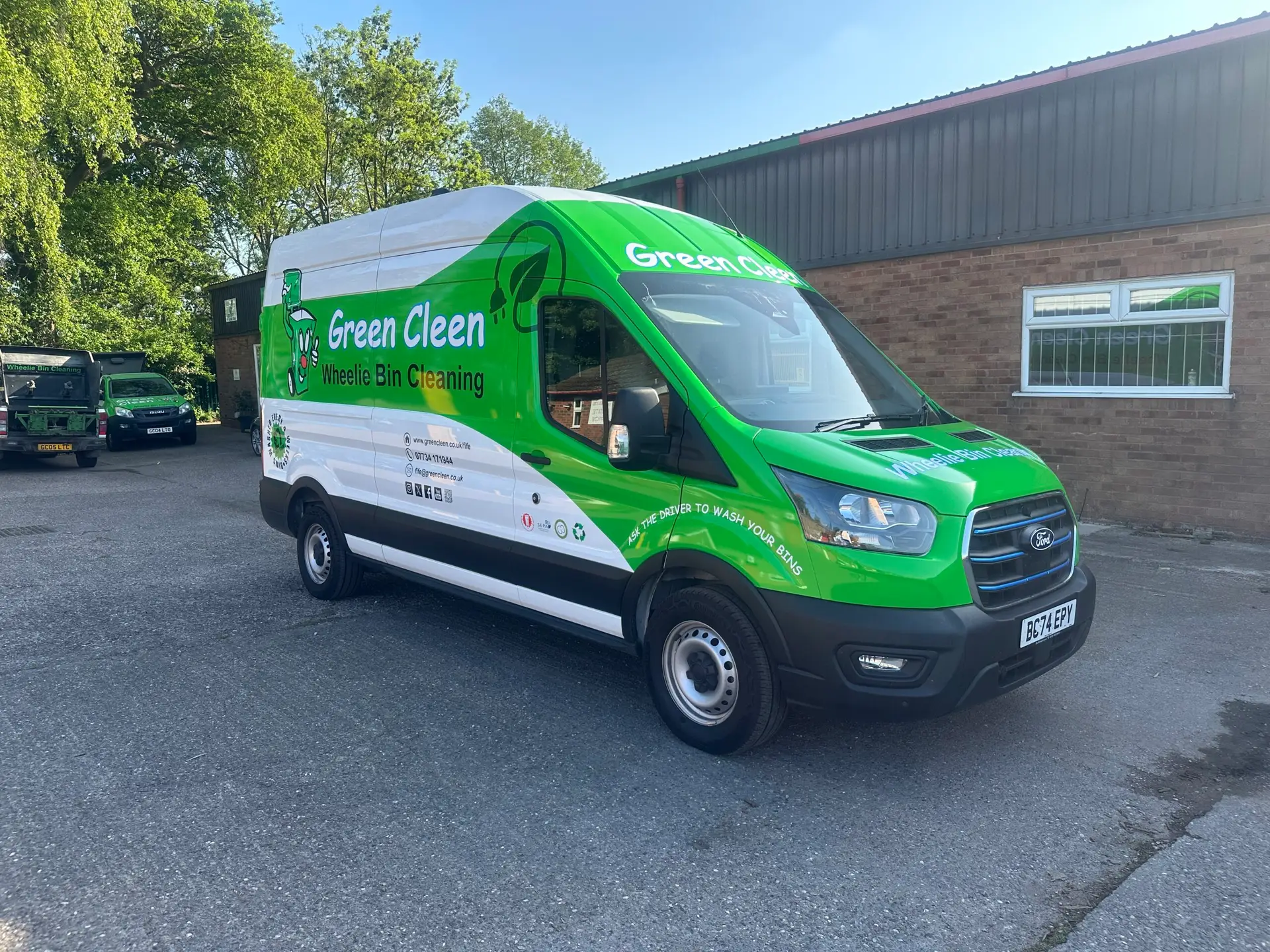

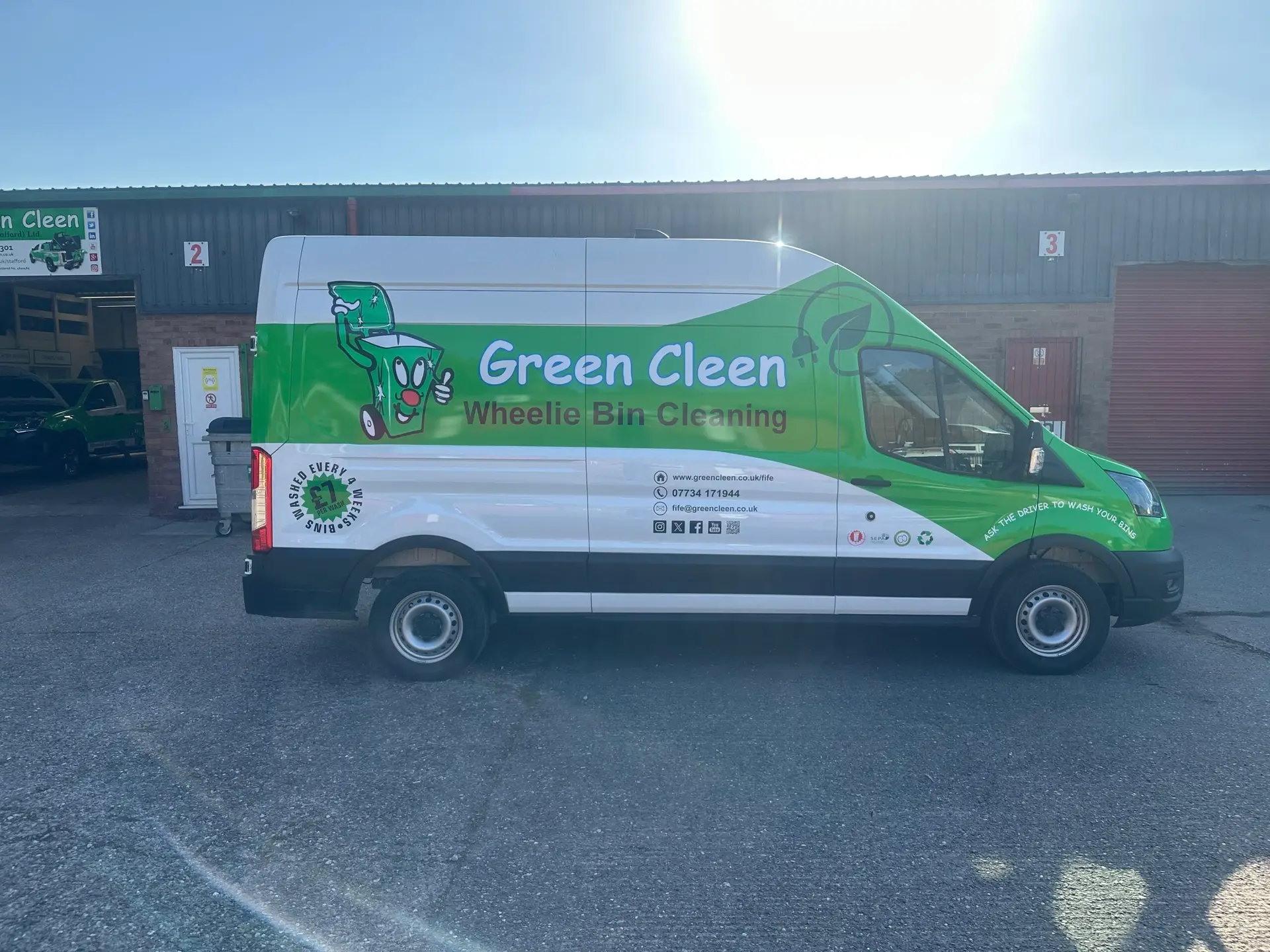

Its enclosed design keeps the rear doors sealed during transit, protecting the water system from freezing temperatures—perfect for operators working in colder climates. Mounted to high-top enclosed vans, the system remains compact, easy to manoeuvre, and requires no special driving licence.
Every machine features Green Cleen’s advanced 4-stage water recycling system, filtering to 300 microns for maximum efficiency and sustainability. Equipped with a Honda petrol engine, paired with a 30 L/pm high-performance water pump to match your workload.

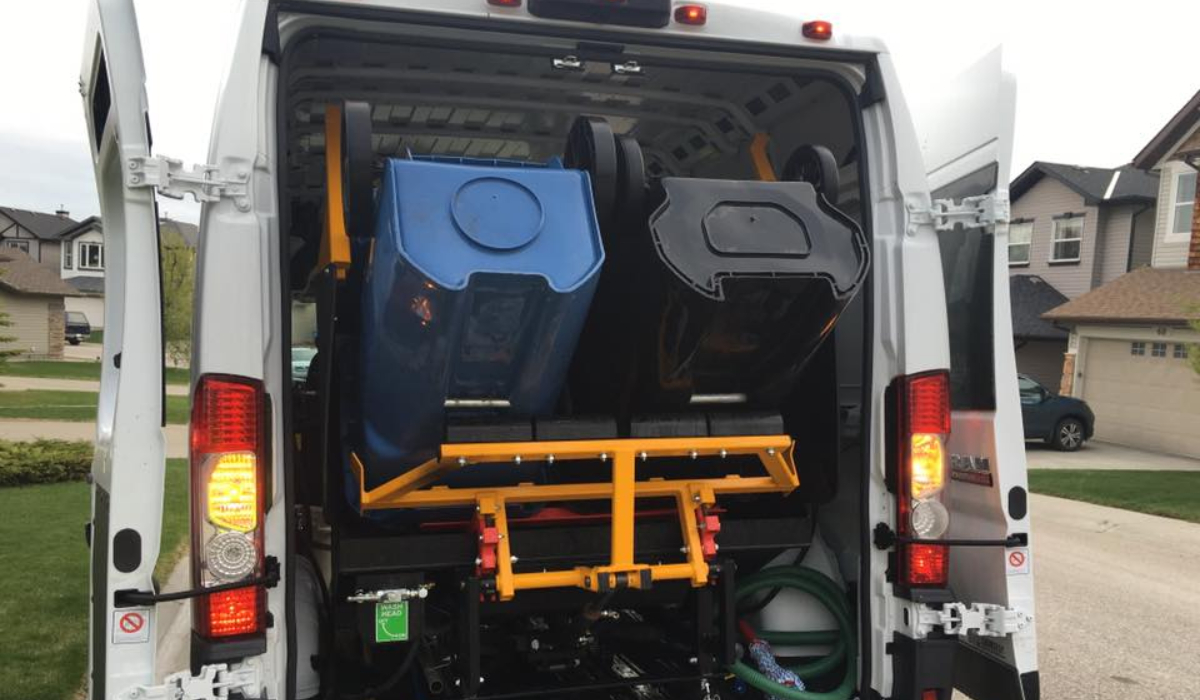

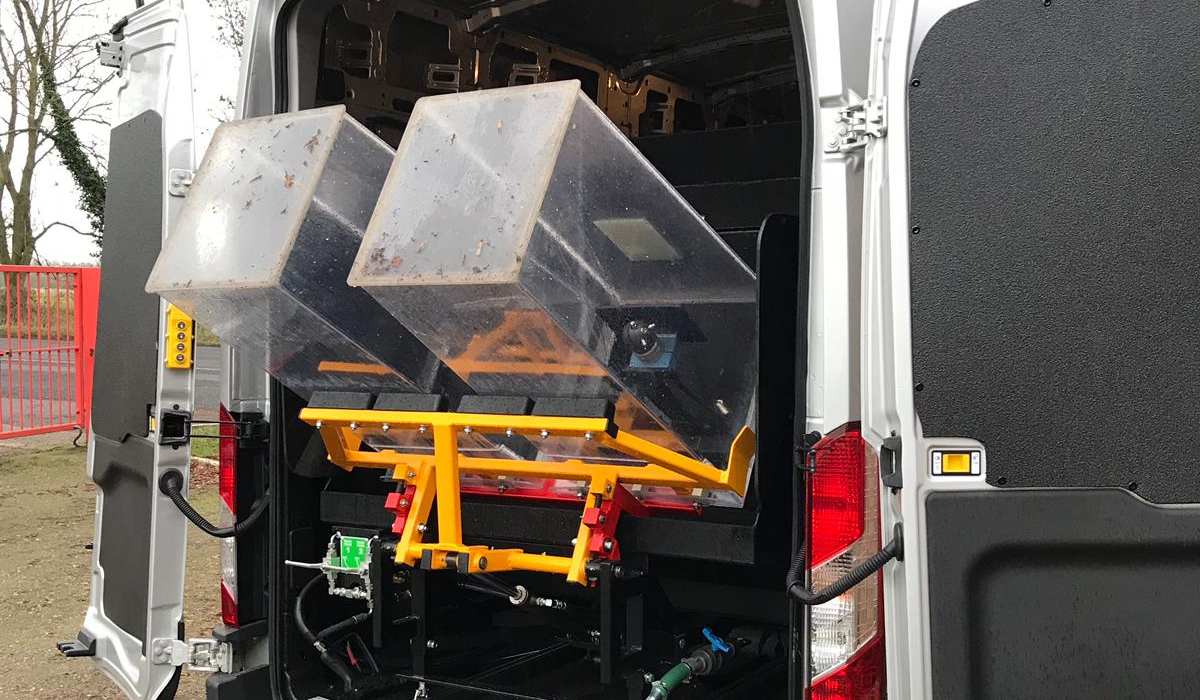

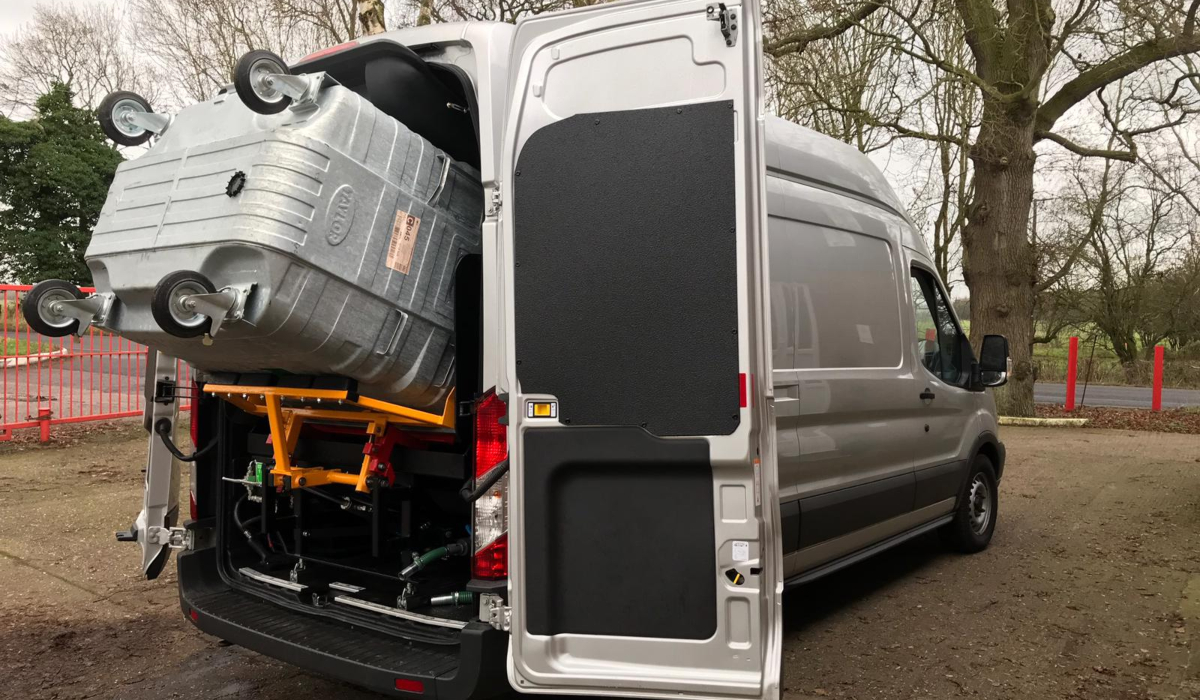

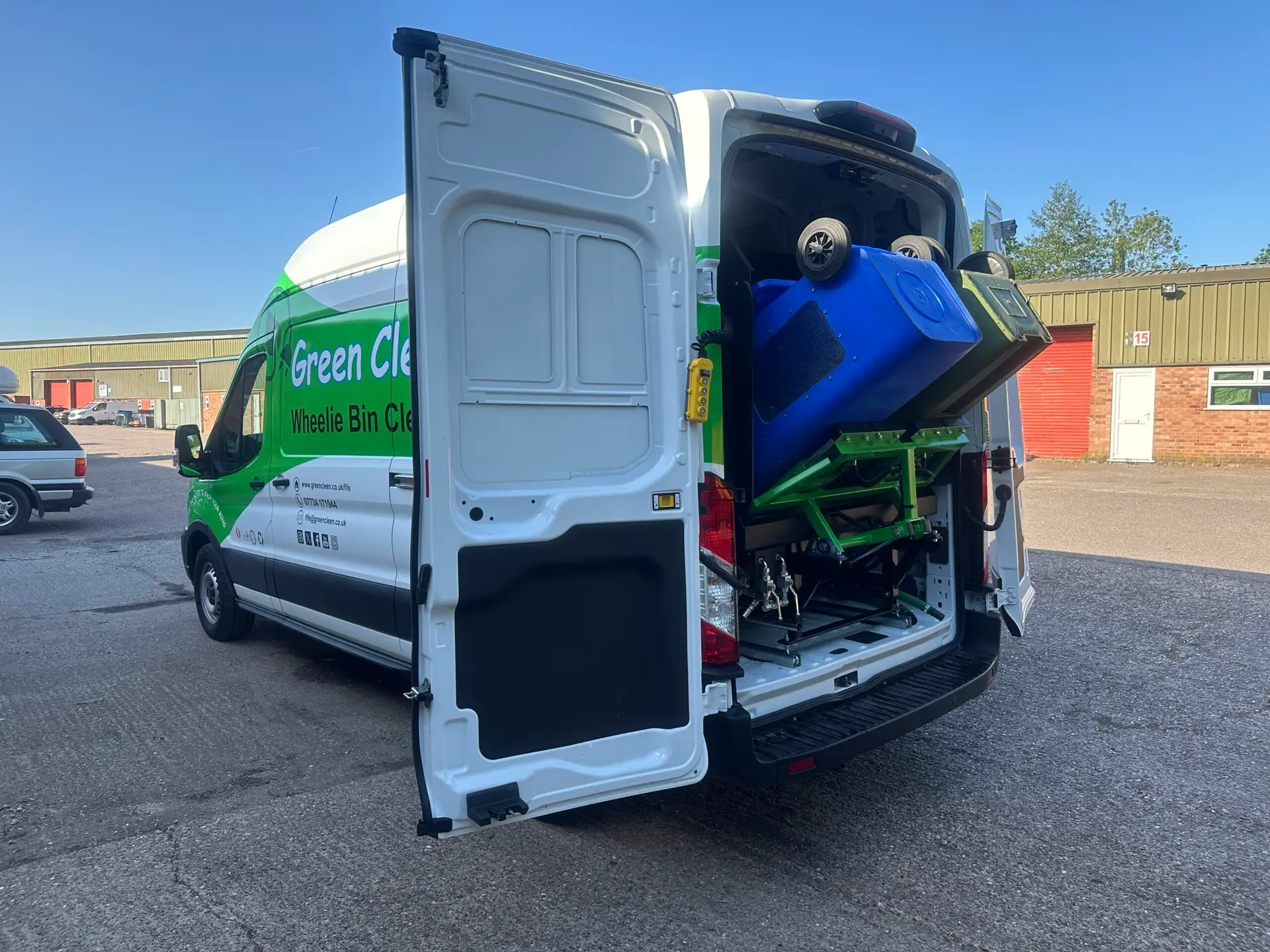

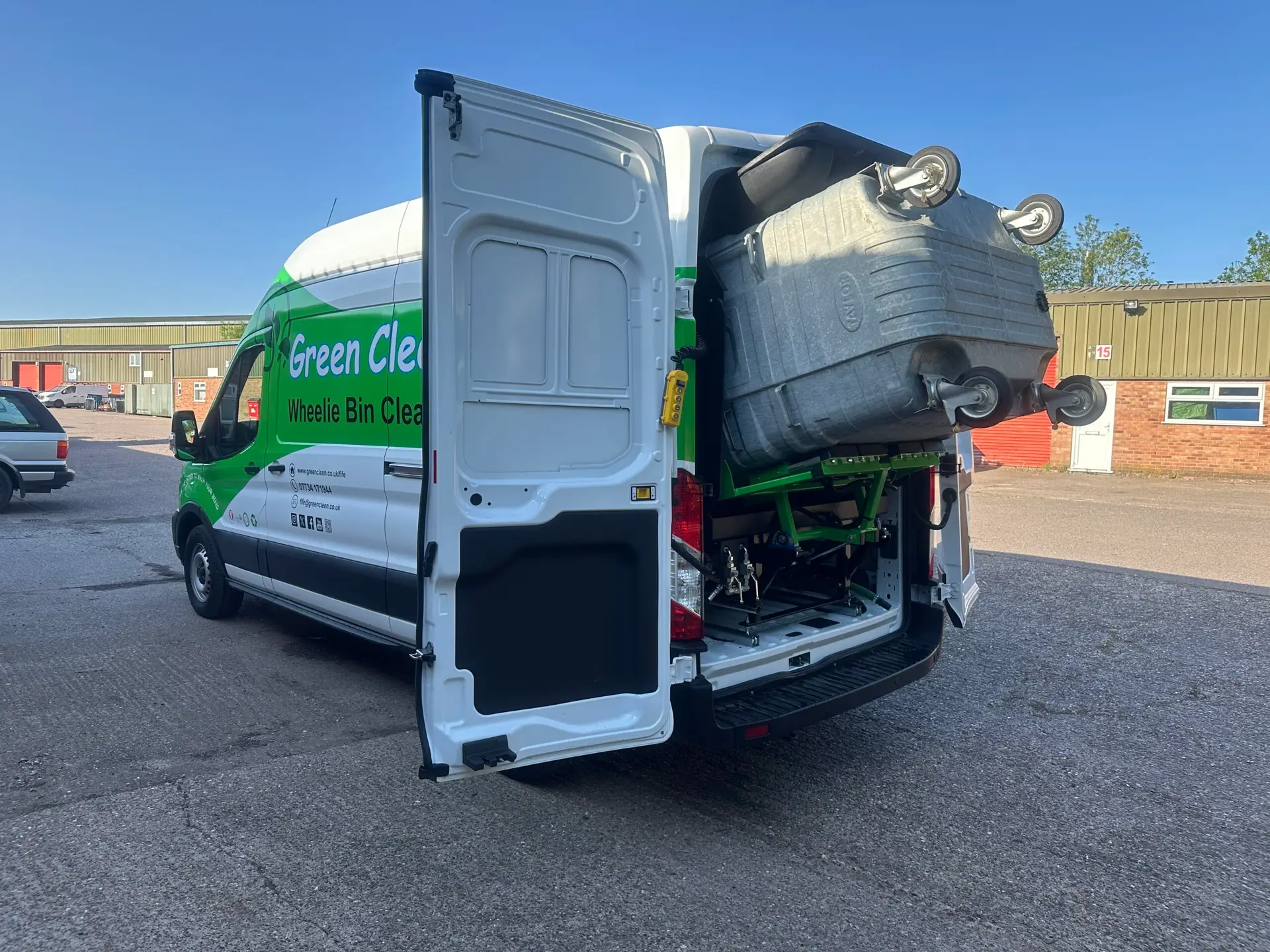

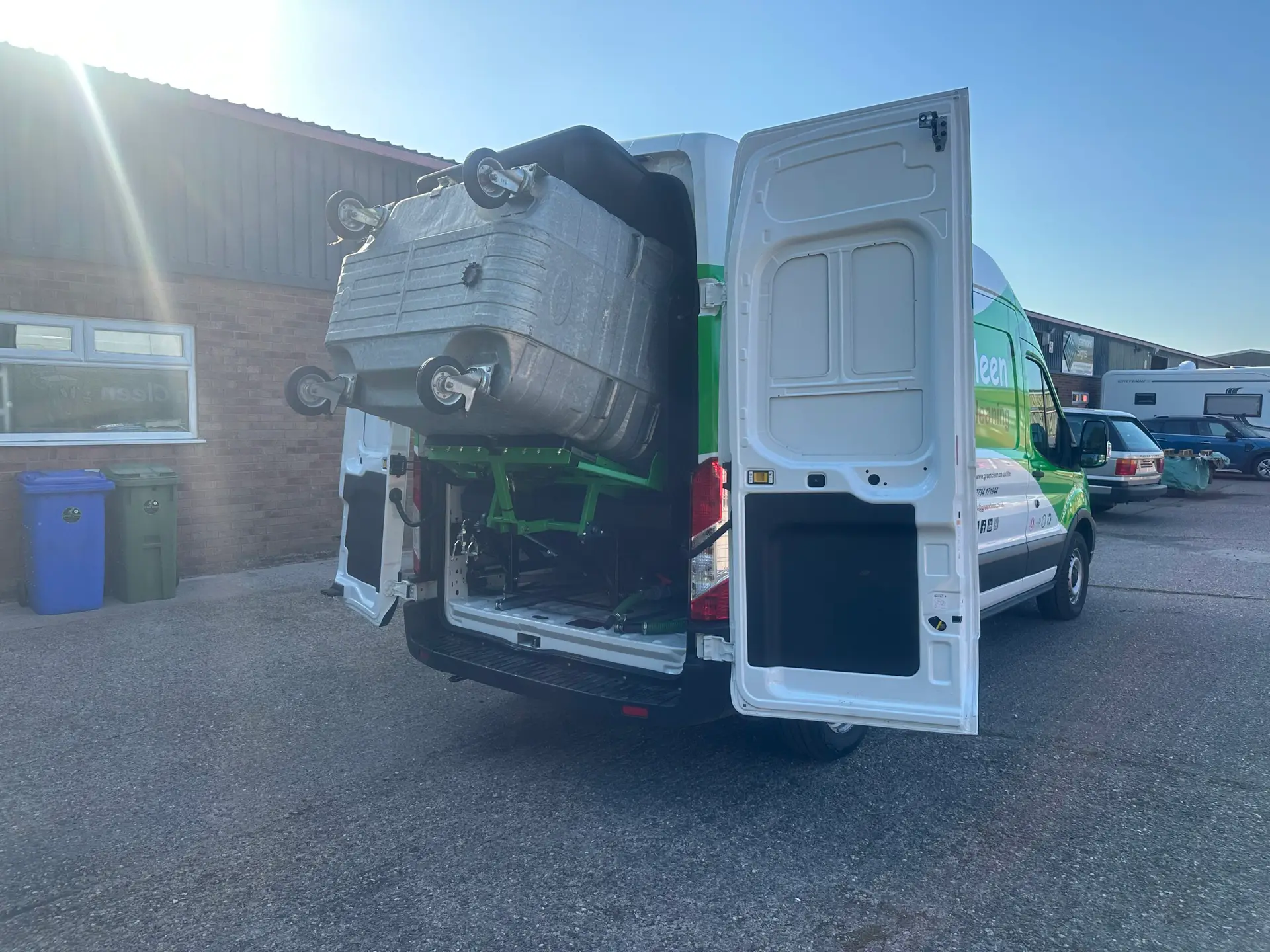

The durable double-acting hydraulic lift makes light work of any two-wheeled residential bin or RAL-standard commercial container. Inside bins are blasted by two fixed orbital high-pressure cleaner heads, while a hand lance ensures spotless results on the exterior.
This is bin cleaning—done faster, cleaner, and smarter.
Key Features
Compact Design – Optimized for space and maneuverability
High-Pressure Wash System – Delivers powerful cleaning performance
Hydraulic Slide System – Smooth machine retraction and deployment
Double-Acting Hydraulic Lifting Frame – Minimal operator effort required
Integrated Multi-Stage Water Recycling – Efficient reuse of water
Orbital High-Pressure Wash Heads – Ensures complete bin cleaning coverage
High-Pressure Hand Lance – Flexible cleaning options
Water Pump – 30 L/min
Optima Gel Battery – Reliable long-life power source
Removable Filter Tray – Simplifies maintenance
Shot-Blast & Powder-Coated Metalwork – Corrosion-resistant, durable finish
Certifications – CE, WRAS, and SafeContractor approved
Specifications
Engine: 13hp Honda GX390 petrol engine
Water Tank Capacity: 530L or 600L
High-Pressure Pump: 30 L/min, 140 BAR (2320 psi)
Battery: Optima Gel battery
Filtration: Multi-stage system, down to 300 microns
Hand lance: High-pressure, 30 L/min at 140 BAR (2320 psi)
Duplex Bin Washer Dimensions and weights:
With 440L water tank option:
- Height: 1.065 m
- Width: 1.05 m
- Length: 0.80 m – With fittings 0.98 m
- Water tank weight empty = 65 kg
- Water tank weight full = 505 kg Max
- Main machine weight = 400 kg
- Total combined weight of machine including full water tank= 950 kg (approx)
- Extras for vehicle weight allowance including cleaning tools and spare chemicals allow an extra 20 kg
With 530L water tank option:
- Height: 1.165 m
- Width: 1.05 m
- Length: 0.80 m – With fittings 0.98 m
- Water tank weight empty = 70 kg
- Water tank weight full = 600 kg Max
- Main machine weight = 400 kg
- Total combined weight of machine including full water tank= 1000 kg (approx)
- Extras for vehicle weight allowance including cleaning tools and spare chemicals allow an extra 20 kg
Download the van-mounted Duplex -Zer0° Bin Cleaning Equipment Specification Sheet here: Download
Chassis Suitability
To mount the Duplex -Zero° Bin Washer, your high-top van should meet the following minimum requirements:
Load space: 270cm (L) × 146cm (W) × 190cm (H, door frame) x 134 between wheel arches
Floor to bed height: Max 800mm
Payload: At least 1000kg
If your van has a tow bar, it may need removal depending on its projection. For new vans, we recommend a watertight-treated load space. In colder climates, a heating system is also advisable. For the easiest use and maintenance we recommend sliding doors on both sides of the van.
For guidance on suitability or fitting costs, our team is happy to assist.
Delivery and Shipping information
Overseas: We can provide quotations from door-to-door shipping agents and handle communication directly. Customers may also get their own quotes for comparison. Delivery times will be included.
Local Installation: Requires a mechanic or engineer with a forklift. We provide fitting guides and phone support. Equipment can be shrink-wrapped, or bespoke wooden crates can be arranged for approximately £800.
Recommended Spares pack:
Unloader Valve
Trough Pump
Float Switch
Microswitch
12V Starter Switch
Wash Head Filters (2x)
Spare push button control panel
Delivery Dimensions (shrink-wrapped on pallets)
Water Tank (600 litre): 140cm (L) × 95cm (W) × 135cm (H)
Weight: 160kg
Main Machine: 170cm (L) × 150cm (W) × 190cm (H)
Weight: 470kg
Delivery Dimensions (in wooden crates)
Water Tank (600 litre): 140cm (L) × 95cm (W) × 135cm (H)
Weight: 180kg
Main Machine: 176cm (L) × 158cm (W) × 162cm (H)
Weight: 485kg
Overseas Payment Details
Bank: NatWest
IBAN: GB52NWBK60212169404178
SWIFT: NWBKGB2L
Account Number: 69494178
Sort Code: 60-21-21
HS Tariff: 84 22 20 00 00
EORI Number: GB792436307000
Bespoke Crates are available
For information on all delivery options and dimensions, click the “Delivery” tab above.
Warranty
- All Green Cleen Bin Cleaning Equipment comes with a 1-year warranty.
